Buffer Seals

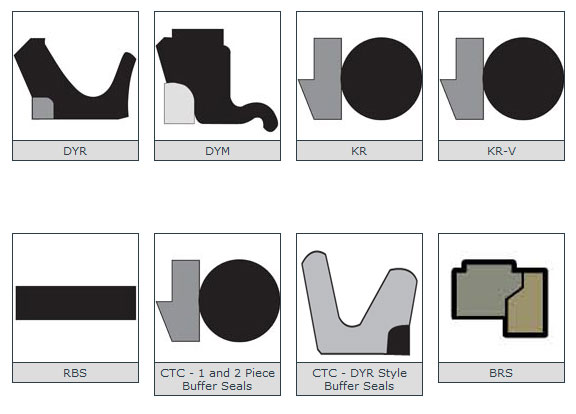

Click on thumbnails for technical information

Buffer seals are used to protect the rod seal from pressure spikes.  A buffer seal's design incorporates channels that allow fluid to flow around the buffer seal under normal operating conditions.  In the event of a surge in hydraulic pressure, these channels bottleneck the applied pressure and prevents the spike from reaching the rod seal.

Buffer Seals - Type R, RB, RM, RS
Standard Buffer Seals

Used to protect rod seal from pressure spikes. Our PTFE rod contact surface provides low friction and long seal life. Heavy-duty rod seal for applications requiring low friction and service at extreme temperatures

  • Features: Protects rod seal from pressure spikes; low friction with improved rod seal life; vents back pressure
  • Applications: Provides secondary sealing to reduce the effects of pressure spikes; Medium duty cycle
  • Materials: Filled PTFE & Nitrile
  • Max Pressure: 6,000 psi
  • Temperature range: -50 °F to +250 °F
  • Max Velocity: 3.2 ft/sec
Premium Buffer Seals

Used for extreme pressure spikes and for larger rod applications. This product was designed to vent backpressure

  • Features: Protects rod seal from pressure spikes; low friction with improved rod seal life; vents back pressure
  • Applications: Provides secondary sealing; High duty cycle; Recommended for large rod diameters
  • Materials: Filled PTFE & Nitrile
  • Max Pressure: 10,000 psi
  • Temperature range: -50 °F to +250 °F
  • Max Velocity: 3.2 ft/sec
