Sanitary Gaskets for pipe coupling

ORDERING CODES CLAMP GASKETS
ITEM NUMBERS

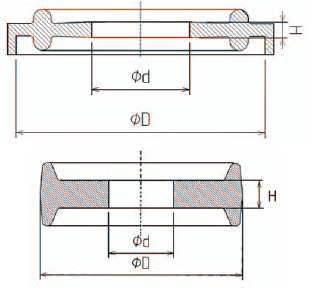

ON	d BORE	D	H	FLANGE DIA.	EPDM/ 400	VMQ/ 300	VMQ/ 600	FPM/ 300	NBR/ 001	PTFE/ 598	PTFE ENVELOPE	KALREZ	MINI CLAMP	IS02852	IS01127	DIN32676
4	4	21.84	2	25.4	425675								X
4\1	4.2	21.84	2	25.4	425556		425571						X
6	6.2	34	2.1	34			425618									X
8\1	6.2	21.84	2	25.4	425557		425674			425472			X			X
	6.22	21.84	2	25.4									X
8\2	8	21.84	2	25.4	425670			425669					X			X
10\3	8	21.84	2	25.4						425471			X			X
8\4	8.2	21.84	2.1	25.4	425555		425554						X			X
8	8.2	34	2.1	34			425676									X
12.7\1	9.6	21.84	2	25.4	425558		425559						X			X
12\2	9.7	21.84	2	25.4						425469			X
10\2	10	21.84	2	25.4	425672			425671					X
12\2	10	21.84	2	25.4							425613		X
10	10	34	2.1	34						425700						X
10	10.2	34	2.1	34	425466	425663	425643	425498								X
8	10.3	34	2.1	34											x
8	10.5	50.5	2.1	50.5	425593		425580								X
12.7	10.5	21.84	2	25.4	425449	425456		425452		425661		425442	X			X
8\3	10.5	21.84	2	25.4	425604								X			X
11.3	11.3	21.84	2	25.4	425706			425704					X
12\1	12	21.84	2	25.4	425668			425699					X
14\1	12	21.84	2	25.4						425623			X
10\1	12.3	21.84	2	25.4	425496								X
13	13	21.84	2	25.4	425464								X
10	13.5	50.5	2.1	50.5						425609					X
14\2	14	21.84	2	25.4	425666			425667					X
14\3	14.2	21.84	2	25.4	425551		425552						X			X
10\1	14.2	34	2.1	34	425687										X
10	14.2	50.5	2.1	50.5	425594		425581								X
14.5	14.5	21.84	2	25.4				425705					X
17.2	15.4	34	2.1	34										X
19.05	15.9	21.84	2	25.4	425447	425458	425553	425457				425443	X			X
18\1	16	21.84	2	25.4	425495			425617		425470	425494		X			X
15	16.2	34	2.1	34	425467	425662	425644	425444		425626						X
15\1	18.1	34	2.1	34			425596								X
15	18.1	50.5	2.1	50.5						425607					X
15	18.3	50.5	2.1	50.5	425576		425582	425679							X	X
21.3	19.5	34	2.1	34										X
20	20.2	34	2.1	34	425465	425474	425645	425445	425468	425625						X
1"	22.3	50.5	2.1	50.5	425744		425747	425750								X
25	22.8	50.5	2.1	50.5	425401	425390	425540	425396	425400	425522	425530	425435		X
20	22.9	50.5	2.1	50.5											X
20	23.9	50.5	2.1	50.5	425595		425583	425680		425610					X	X
25	26.2	50.5	2.1	50.5	425475	425477	425646	425476		425453	425714					x
25	29.7	50.5	2.1	50.5						425611					X
25	29.9	50.5	2.1	50.5	425597		425584	425681							X	X
25	30.5	50.5	2.1	50.5											X
33.7	31.5	50.5	2.1	50.5										X

ON	d BORE	D	H	FLANGE DIA.	EPDMI 400	VMQ/ 300	VMQ/ 600	FPM/ 300	NBR/ 001	PTFE! 598	PTFE ENVELOPE	KALREZ	MINI CLAMP	IS02852	IS01127	DIN32676
32	32.2	50.5	2.1	50.5	425478		425619	425479		425624	425703					X
11/2."	35	50.5	2.1	50.5	425745		425748	425751								X
38	35.6	50.5	2.1	50.5						425521				X
38	35.8	50.5	2.1	50.5	425403	425391	425541	425397	425402		425531	425432		X
40	37.8	64	2.1	64										X
40	38.2	50.5	2.1	50.5	425480	425481	425648	425482		425454						X
32	38.6	64	2.1	64	425598		425585	425682		425621					X	X
40	44.3	64	2.1	64						425612					X
40	44.5	64	2.1	64	425577		425579	425683							X	X
2"	47.7	64	2.1	64	425746		425749	425752								X
51	48.8	64	2.1	64	425405	425392	425542	425398	425404	425520	425532	425436		X
50	50.2	64	2.1	64	425483	425484	425649	425493		425455						X
50	50.3	77.5	2.1	77.5											X
50	56.5	77.5	2.1	77.5	425599		425586	425684		425606	425719				X	X
63.5	60.5	77.5	2.1	77.5	425407	425393	425543	425434	425406	425523.	425533	425437		X		X
65	66.2	91	2.1	91	425485	425499	425650	425486								X
70	67	91	2.1	91										X
65	72.3	91	2.1	91	425628		425587	425685		425701					X	X
65	72.9	91	2.1	91											X
76.1	73.1	91	2.1	91	425409	425394	425544	425433	425408	425524	425534			X		x
80	80.2	106	2.1	106											X
80	81.2	106	2.1	106	425487	425664	425651	425711	425463							X
80	84.5	106	2.1	106	425635		425588	425686		425702					X	X
88.9	85.1	106	2.1	106	425451					425622				X
101.6	97.8	119	2.1	119	425411	425395	425545	425446	425410	425525	425535			X
100	100.2	119	2.1	119	425489	425504	425652	425488								X
100	109.9	130	2.1	130	425630		425589								X	X
114.3	109.3	130	2.1	130	425638		425653	425733	425729	425528				X
127	120.2	144.5	2.1	144.5	425639		425654							X
125	125.2	155	2.1	155	425636											X
139.7	135.9	155	2.1	155	425735			425734	425736					X
152.4	147.2	167	2.1	167	425640		425655							X		X
150	150.2	183	2.1	183	425637			425490								X
150	163.3	182.7	2.1	182.7	425631		425590		425713						X
168.3	163.3	183	2.1	183	425399				425726	425526				X		X
203.2	198.2	217.5	2.1	217.5	425641		425656							X
200	200.2	233.5	2.1	233.5	425627				425720		425688					X
200	214.1	233.5	2.1	233.5	425632		425591							X	X	X
219.1	214.1	233.5	2.1	233.5				425732	425427	425658	425492			X	X	X
254	250.2	268	2.1	268	425642		425657							X
250	266.5	287.5	2.1	287.5	425633		425629								X
304.8	300	319	2.1	319		425678								X
300	316.1	338.3	2.1	338.3	425634		425592								X
		25.4	2	25.4	425614		425550			425473			X	X	X	X
		34	2.1	34	425562		425560							X	X	X
		50.5	2.1	50.5	425563		425561			425547				X	X	X
		77.5	2.1	77.5	425565									X	X	X
		91	2.1	91	425566									X	X	X
